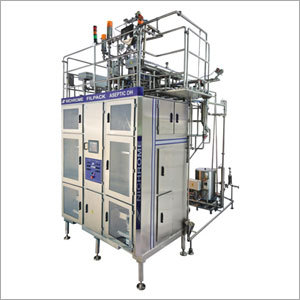

Filpack Aseptic

Filpack Aseptic
Filpack Aseptic
Send Inquiry
Product Code : 07
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price
  • 1500000 INR/Unit
Product Specifications
  • Product Type
  • Filpack Aseptic
  • Material
  • Mild Steel
  • Application
  • Medical
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Drive Type
  • Electric
  • Voltage
  • 110-440 Volt (v)
  • Feature
  • Stable Performance, High Efficiency, ECO Friendly, High Performance, Simple Control
Product Description


Applications
UHT Plain Milk, Flavor milk, Lassi,
Butter milk, Juice drinks, Cooking cream, Ice cream, Yoghurt.

About Aseptic
The concept of Aseptic packaging is packing a sterile product without re-contamination in a Aseptic packing system to give long shelf life to the product (60 to 180 days) at ambient temperature eliminating cool chain. The product is processed at Ultra High Temperature (UHT) upto 140 o C for a brief period and rapidly cooled to room temperature to approx. 20o C. This eliminates bacteria / micro-organisms harmful for human consumption without losing the nutritional value of the product making it sterile.


















Technical Specifications

Model

AS 2000 L

AS 4000L

Machine type

Single head

Double head

Machine output (upto)

500 ml - 2000 pouches / hr

500 ml - 2000 pouches / hr

1000 ml - 1500 pouches / hr

1000 ml - 3000 pouches / hr

Quantity Range

100 ml to 1000 ml


Pouch style

3 side seal pillow pouch


Pouch Width

155mm (or as per customer specifications)


Machine Operation

Electro - pneumatic


Film sterilization

Hydrogen peroxide - 35% concentration , Sterile air


Filling system

Gravity type continuous filling system


Electrical Supply

415 V, 50 Hz, 3 phase (other options on request)


Film specs

Thickness 85 microns, Max Roll Dia -300 mm (Jumbo roll option available)


Soft Cooling water

200 l / hr @ 8 to 12oC

400 l / hr @ 8 to 12oC

Compressed Air

a) for machine

a) 30 m / hr @ 6 bar

a) 60 m / hr @ 6 bar

b) for dry, oil free air from blower

b) 800 l / hr @0.8 bar

b) 1000 l / hr @ 0.8 bar

Steam consumption for sterilisation

35 kg / hr at 1.5 to 2.5 bar min

60 kg / hr at 1.5 to 2.5 bar min

Date/Batch coding system

Optional

Optional

Integrated CIP Unit

Included


Trade Information
  • Payment Terms
  • Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 4 Week
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
