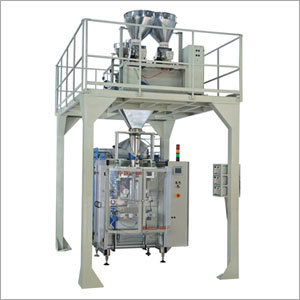

Two Station Linear Weigher System

Two Station Linear Weigher System
Two Station Linear Weigher System
Product Code : 20
Product Description

Excel Linear Weigher

Applications
Candies, Dry fruits, Tea, Rice, Sugar,
Grains, Pulses, Whole Spices, Seeds, Detergent

Salient Features
- Quick & easy size change over without tools
- Designed for compliance to CE norms as well as Sanitory Standards




















Technical Specifications

Specifications
Model 400
Model 350
Rated Output
(max upto)
75 packs/min
For laminate films 80packs/min
For Co-ex films 40packs/min
Quantity Range
20,000 cc 17,000 cc
Min Pouch size
100 x 150 mm(WxL)
80 x 80 mm (WxL)
Max Pouch size
400 x 600 mm (WxL)
350 x 470 mm(WxL)
Power consumption
10 Kw
4 Kw
Power Supply
3-phase 415 VAC or equivalent
3-phase 415 VAC or equivalent
Air consumption
5 cfm or 8m3/hr @ 6 bar pressure
12.94 cfm or 22m3/hr bar pressure
Packaging material
Heat sealable laminates (PET/POLY) And Co-ex film
Heat sealable laminates (PET/POLY) And Co-ex film
Film roll diameter
600 mm (Core dia 75mm) max
600 mm (Core dia 75mm) max
Machine dimensions(approx) 2350x3342x4131 (WxDxH) mm 2350x3342x4131 (WxDxH) mm
