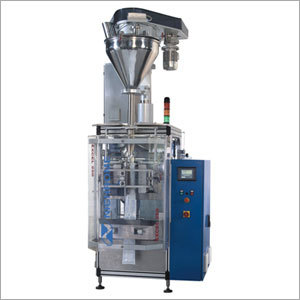

Excel Auger Filler

Specifications

Model 400

Model 350

Rated Output
(max upto)

75 packs/min

For laminate films 80packs/min
For Co-ex films 40packs/min

Quantity Range

20,000 cc

17,000 cc

Min Pouch size

100 x 150 mm(WxL)

80 x 80 mm (WxL)

Max Pouch size

400 x 600 mm (WxL)

350 x 470 mm(WxL)

Power consumption

10 Kw

4 Kw

Power Supply

3-phase 415 VAC or equivalent

3-phase 415 VAC or equivalent

Air consumption

5 cfm or 8m³/hr @ 6 bar pressure

12.94 cfm or 22m3/hr bar pressure

Packaging material

Heat sealable laminates (PET/POLY) And Co-ex film

Heat sealable laminates (PET/POLY) And Co-ex film

Film roll diameter

600 mm (Core dia 75mm) max

600 mm (Core dia 75mm) max

Machine dimensions(approx)

1490x1930x3488(WxDxH) mm

1490x1930x3488 (WxDxH) mm
